Creating a New Project
To get started, follow these steps:

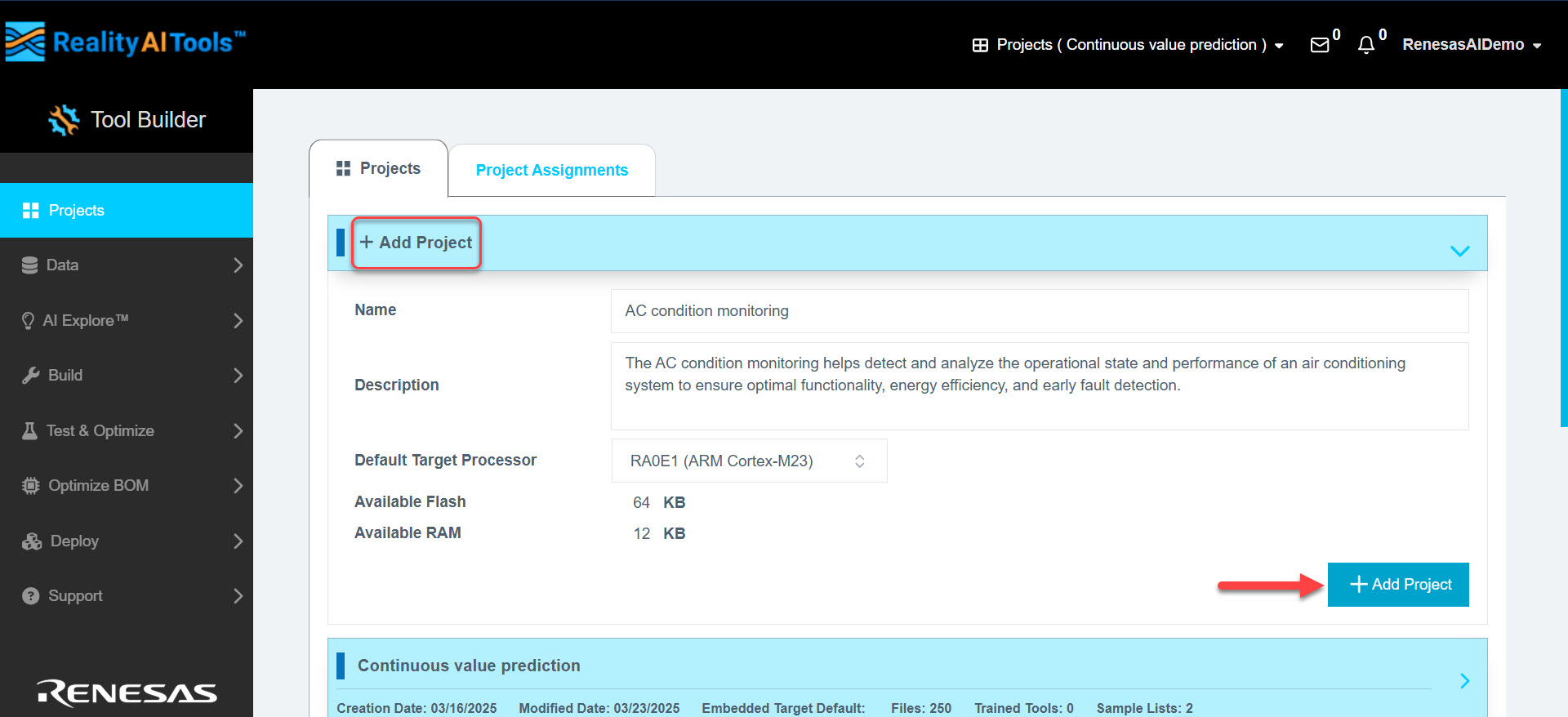

- Click the + Add Project button to open the project creation form.
- Fill in the Project details.
| Field | Description |
|---|---|
| Name | (Required) Enter a unique name for your project. |
| Description | (Optional) Provide a brief description of your project to help identify its purpose. |
| Default Target Processor | (Optional) Choose a Renesas Processor from the dropdown menu to implement or test your project. You can change the processor at any time. Alternatively, you can leave this field blank and select a processor later. |
| Available Flash | Displays the processor’s available flash memory in kilobytes (KB). Flash memory stores program code and data permanently. This field is auto-populated based on the selected processor. |
| Available RAM | Shows the available Random Access Memory (RAM) in kilobytes (KB). RAM is used for temporary data storage during runtime. This field is also auto-populated based on the selected processor. |

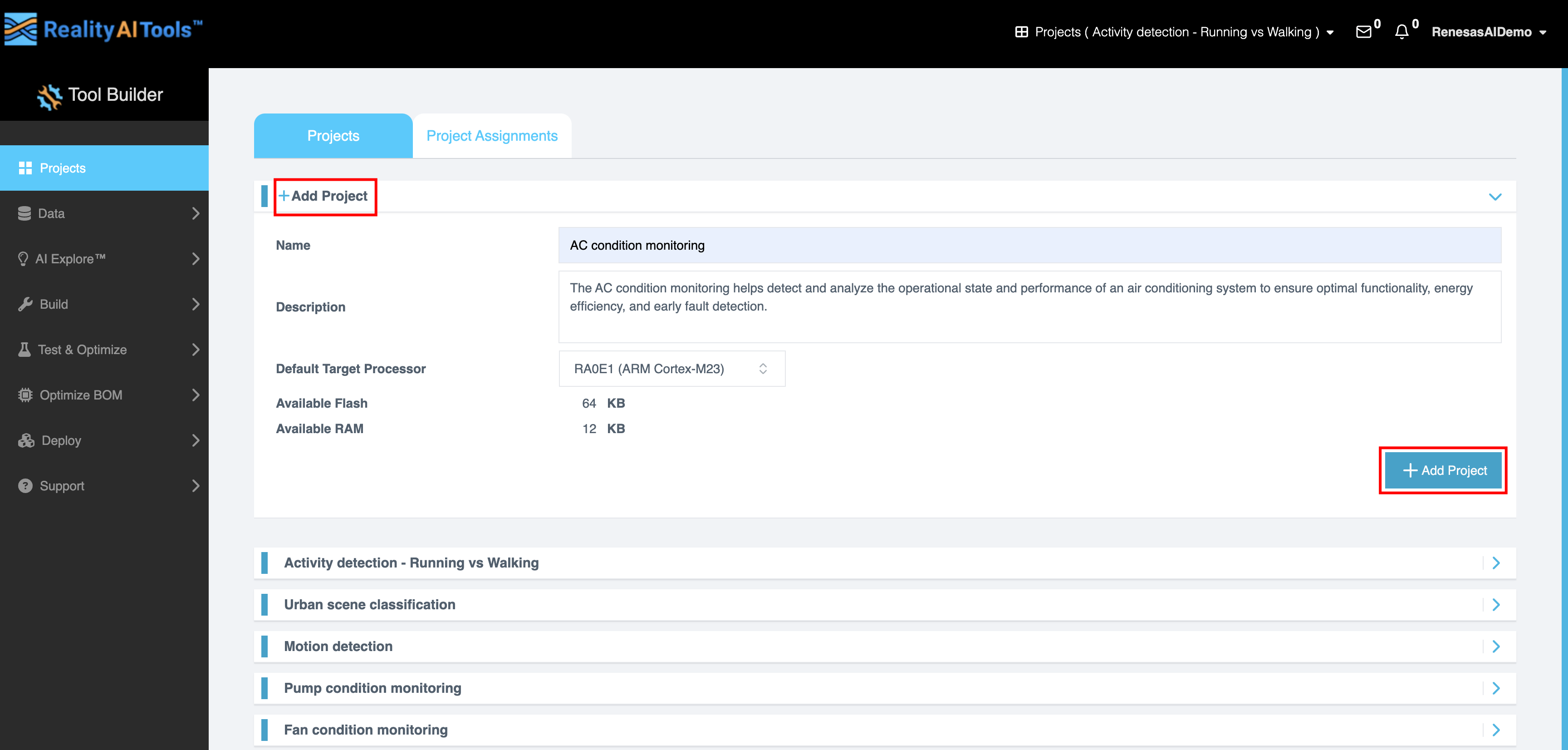

- Once you've filled in the details, click + Add Project to save and create the project.
Available processors
1. Renesas RA Series
Processors:
RA0E1, RA2L1, RA2E1, RA2E2, RA2A1, RA4M1, RA4M2, RA4M3, RA4E1, RA4W1, RA6M1, RA6M2, RA6M3, RA6M4, RA6M5, RA6E1, RA6T2, RA6T1, RA8M1, RA8D1, RA8T1
Evaluation Boards:
FPB-RA0E1, VOICE-RA2L1, MCK-RA2E1, VOICE-RA4E1, AIK-RA4E1, MCK-RA6T2, VOICE-RA6E1, AIK-RA6M3, CK-RA6M5, EK-RA8M1, EK-RA8D1, AIK-RA8D1, VOICE-RA8M1, VOICE-RA8T1, MCK-RA8T1, VK-RA8M1
2. Renesas RX Series
Processors:
RX11x, RX130, RX13T, RX14x, RX21x, RX22x, RX23x, RX24x, RX61x, RX62x, RX63x, RX64x, RX65x, RX660, RX66N, RX66T, RX67x, RX71x, RX72x
Evaluation Boards:
MCK-RX26T, RSSK-RX23T, RSSK-RX13T, RSSK-RX66T, RSSK-RX72T, CK-RX65N, CAP TOUCH RX671
3. Renesas RL78 Series
Processors:
RL78/F14, RL78/F15, RL78/F24, RL78/G13, RL78/G13A, RL78/G14, RL78/G1H, RL78/G1D, RL78/G23, RL78/I1C, RL78/L1C
4. Renesas RZ Series
Processors:
RZ/T Series: RZ/T1, RZ/T1-M, RZ/T2L, RZ/T2M
RZ/A Series: RZ/A1H, RZ/A1L, RZ/A1LC, RZ/A1LU, RZ/A1M, RZ/A2M, RZ/A3UL
RZ/N Series: RZ/N1D, RZ/N1L, RZ/N1S, RZ/N2L
RZ/G Series: RZ/G1E, RZ/G1H, RZ/G1M, RZ/G1N, RZ/G2E, RZ/G2H, RZ/G2L, RZ/G2LC, RZ/G2M, RZ/G2N, RZ/G2UL, RZ/G3S
RZ/V Series: RZ/V2L
5. Renesas RH850 Series
Processors:
RH850/C1H, RH850/C1M, RH850/C1M-A1, RH850/C1M-A2, RH850/D1L1, RH850/D1L2, RH850/D1M1, RH850/D1M2, RH850/E1L, RH850/E1M-S, RH850/E1M-S2, RH850/F1H, RH850/F1K, RH850/F1L, RH850/F1M, RH850/P1H-C, RH850/P1L-C, RH850/P1M, RH850/P1L, RH850/UA2-EVA, RH850/U2A6, RH850/U2A8, RH850/U2A16, RH850/U2B6, RH850/U2B10, RH850/U2B24
6. DA Series (Dialog Semiconductor)
Processors:
DA14531, DA14580 , DA14592, DA14683, DA1469x, DA1470x, DA14850, DA16200
Evaluation Boards:
DA14531MOD-00DEVKT-P, DA16200MOD-DEVKT-P, DA14760-00HZDECKT-P
7. ARM Cortex Processors
- Cortex-M0, M0+, M1, M3, M4, M7, M23, M33, M35P, M55, M85
- Cortex-R4, R5, R7, R8, R52
- Cortex-A5, A7, A8, A9, A12, A15, A17, A32, A35, A53, A55, A57, A72, A73, A75, A76
8. SoC and PC
- Linux x86_64 (App, Library)
- Windows x86_64 (App, Library)
- Raspberry Pi Zero, Raspberry Pi 3, Raspberry Pi 4 (32/64 bit) (App, Library)
- Raspberry Pi Pico
- Advantech EPC (App, Library)
- Renesas RZ/V2L (App)
